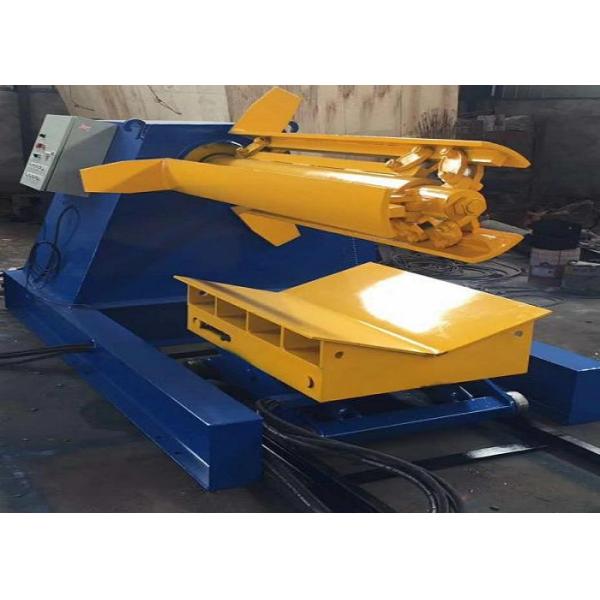

10 Tons Fully Automatic Hydraulic Coil Decoiler Roll Forming Machine Accessories
Specification
10 Tons Fully Automatic Hydraulic Coil Decoiler Parameter
| No. | Item | Description |
| 1 | Dimension (L*W*H) | 2600 mm*1600 mm*1750 mm |
| 2 | Weight | 2.5 Tons |
| 3 | Hydraulic Pump | 5-way solenoid valve, 3kw, 380 V |
| 4 | Motor power | 4kw, cycloid reducer |
| 5 | Frame | Base with 300H GB I-beam, the box is welded with16mm thick steel plate |
| 6 | Main shaft | Thick-walled seamless steel tube, diameter 194*45 mm |
| 7 | Feeding width | 925 mm-1250 mm(can be customized) |
| 8 | Coil inner diameter | 470-530 mm,± 2 mm |
| 9 | Loading weight | 10 tons |
| 10 | Hydraulic cylinder | cylinder diameter 125mm, 1 (plus rotation) |
| 11 | Computer control system | Taiwan Delta inverter (5.5kw), and domestic Zhengtai electrical control parts, inverter |
10 Tons Fully Automatic Loading Car Parameter
| N0. | Item | Description |
| 1 | Lifting | Double cylinder, diameter 90mm, stroke 240mm |
| 2 | Forward | 450 #, hydraulic motor |
| 3 | Dimensions(L*W) | 1250 Mm*1100 m |
| 4 | Car Track | 1.05 m *2.5 m (L*W) |
| 5 | Trip Distance | 0.4 m height, 2.5 m length |
| 6 | Weight | 900 KG |
| 7 | Moving Speed | 2 m / min |
| 8 | Loading weight | 10 tons |
Advantages
1. The load-bearing main shaft adopts high-strength and fatigue-resistant rear wall seamless steel,which is formed by turning and has strong strength and great bearing capacity.
2. The volume is hydraulically controlled, convenient, fast and stable.
3. Electrical control, high precision, good automation, inverter control, speed can be adjusted.
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 20 days after the down payment is received.
