Slat Ppgi Shutter Door Roll Forming Machine Fully Automatic

Brand Name : FMS

Certification : ISO CE

Place of Origin : CHINA MAINLAND

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T, D/A, D/P

Supply Ability : 20 Sets Per Month

Delivery Time : 30 Working Days

Packaging Details : 20' FLC

Product Name : Shutter Door Slat Forming Machine Fully Automatic

Raw Material : PPGI，GI，PPGL GL

Work speed : 15-20m/min

Rolling thinckness : 0.3 mm - 0.8mm

Dimension(L*W*H) : 4*1*1.4m

Condition : New

Voltage : 380V

shaft material : #45 steel

Contact Now

Shutter Door Slat Forming Machine Fully Automatic

In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller wa chromed which can keep the molding plate surface smooth and not easy to be marked when it is working

Feature: Ensure stability, precision and lifetime

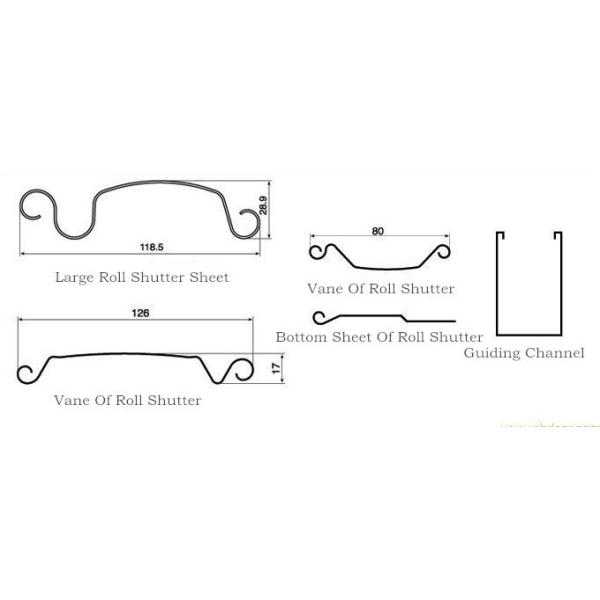

Profile Drawing

Specification

main forming machine	Forming steps	14 steps
	Shaft diameter	40mm
	Machine stand	Memorial arch frame
	Machine frame	carbon steel welded
	Roller material	GCr12MoV
	Shaft material	45# steel
	Work speed	15-20m/min
	Transport	By gear
	Power of main machine	3kw
	Voltage	380V-50HZ-3P(as required)
	Machine dimension	411.4m
	Machine weight	about 2.2T
	Machine color	Yellow and blue(as required)

Slat Ppgi Shutter Door Roll Forming Machine Fully Automatic

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
