380v Container Wall Panel Roll Forming Machine Hydraulic Transmission

Brand Name : FMS

Certification : ISO CE

Place of Origin : CHINA MAINLAND

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T, D/A, D/P

Supply Ability : 20 Sets Per Month

Delivery Time : 30 Working Days

Packaging Details : 40' FLC

Product Name : Container Wall Panel Roll Forming Machine Production Line

Transmission Method : Hydraulic Pressure

Roller Material : 45# Forged Steel

Cutting Blade Material : Cr 12 High Grade Steel

Screen : Color Touch Screen

Warranty of core components : 1 Year

Voltage : 380V /50Hz/3pH or as Customer′s Requirements

Control System : PLC(Imported Brand)

Cutting Type : Hydraulic Cutting

Contact Now

Container Wall Panel Roll Forming Machine Production Line

Main workflow of Container Wall Panel Making Machine:

Uncoiler ----- Molding core ----- Hydraulic System ----- Automatic Control system ----- Step Formed Mechanism
-----Automatic Shearing Mechanism ----- Products Receiving Tables

Specification

Factory Steel Side And Front End Container Wall Panel Roll Forming Machine
Material thickness	0.3-0.8mm
Diameter of shaft(solid shaft)	70mm
Material of shaft (solid shaft)	(high grade) 45# Steel, quenching and tempering treatment
Material of roller	45# steel polished and coated with chrome HRC55-60°
Reducer	8# cycloid reducer (high grade)
Cutting	hydraulic cutting after roll forming
Control system	PLC Frequency Control System with touch screen

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

380v Container Wall Panel Roll Forming Machine Hydraulic Transmission

Product Tags:

380v wall panel roll forming machine

container wall panel roll forming machine

hydraulic transmission wall panel production line

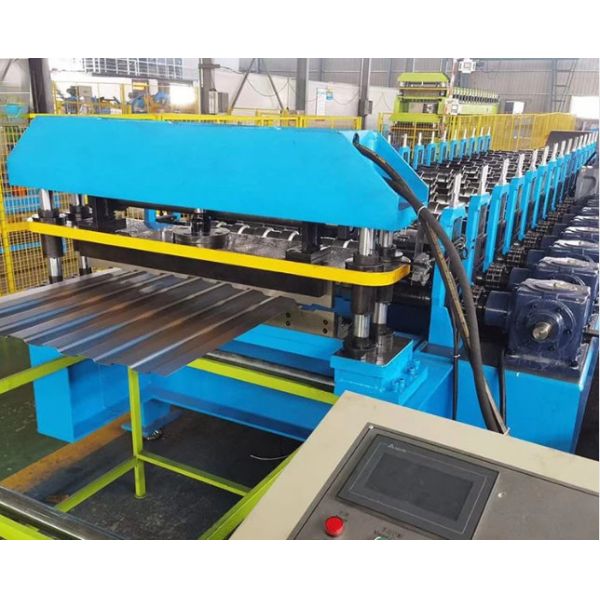

380v Container Wall Panel Roll Forming Machine Hydraulic Transmission Images
