Tophat Roll Forming Machine Omega Profile Stud Making

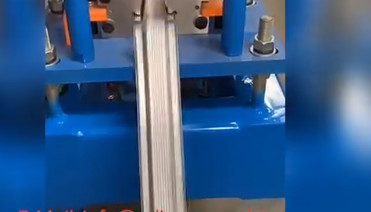

Omega hat-shaped steel purlin forming machine is mainly composed of passive unwinding rack, unwinding rack base, feed introduction platform, leveling device, forming host, punching device, forming and cutting device, hydraulic station, computer control cabinet and other parts.
The finished product of hat-shaped purlin has good bending and compression resistance, good flatness, automatic fixed-length cutting, automatic punching, high degree of automation, and quick and convenient installation.
Specification
| No. | Item | Description |
| 1 | Material Thickness | 1 mm- 3 mm |
| 2 | Working Speed | 8-25m/min ( not including the cutting time) |
| 3 | Pump motor | 4KW; Cutting |
| 4 | Cutting tool material | Cr12, Heat treatment |
| 5 | Electrical Control System | PLC |
| 6 | Main Motor | 5.5KW |
| 7 | Liner speed of roll former | approx. 15~18m/min |
| 8 | Power Supply | 380V, 60HZ, 3 PHASES(can be customized) |
| 9 | Cutting Accuracy | ±2 mm |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
