Integrated Interchange 3mm Cz Purlin Roll Forming Machine

Name: Integrated Interchange 3mm Cz Purlin Roll Forming Machine
Brand: CANGZHOU WILLING
Price: 1 USD

Wholesale Integrated Interchange 3mm Cz Purlin Roll Forming Machine from china suppliers

Brand Name : CANGZHOU WILLING

Model Number : C Z Purlin Machine

Certification : ISO CE

Place of Origin : CHINA MAINLAND

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T, D/A, D/P

Supply Ability : 20 Sets Per Month

Delivery Time : 30 Working Days

Packaging Details : 40' FLC

Product Name : CZ Integrated Interchange Purlin Roll Forming Machine

Raw Material : Galvalume, Galvanized

Dimension(L*W*H) : 7000 mm*1500 mm* 1500

Material Thickness : 1 mm - 3mm

Weight : 5T

Production capacity : 10-20m/min

Voltage : 380V/50HZ/3PH

Main motor power : 15Kw

Contact Now

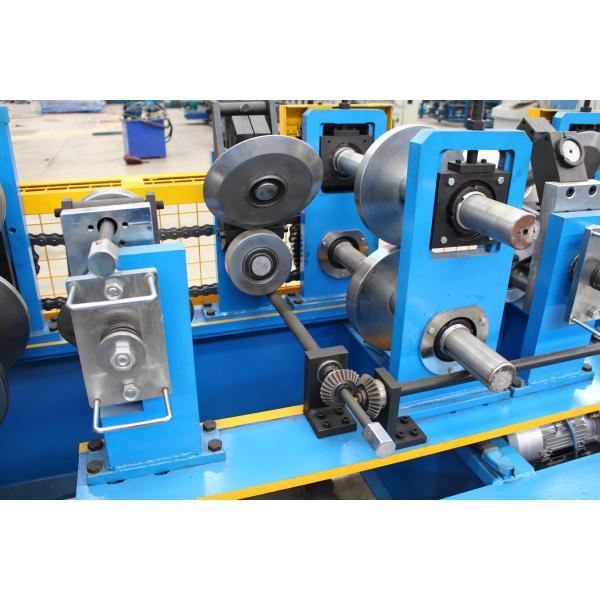

CZ Integrated Interchange Purlin Roll Forming Machine

CZ Channel Adjustable Purlin Roll Forming Machine is make C-type machine and Z-type machine in one.
This equipment can change C Z two type of purlin in short time by manual .

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm- 3 mm
3	Working Speed	10- 20 m/min ( not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	7000 mm1000 mm1300 mm
6	Machine Weight	5000 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	360V/60HZ/3PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Mostly applicate in remove room, apartment,Workshops, warehouses, shopping malls and other buildings. C-shaped and Z-shaped steel are used as beams, supports and tie rods. Its safety factor is quite high and its bearing capacity can also meet the requirements. It can also be used on roofs to support roof and wall panels.

Advantage

This adjustment roll forming machine with two different CZ profiles, and can realize the conversion of the two profiles without replacing the forming roller. Very fast, very efficient.
C-purlin has good straightness and good compressive and flexural properties. Z-purlin can be installed in reverse lap to increase the installation strength of connection points.
