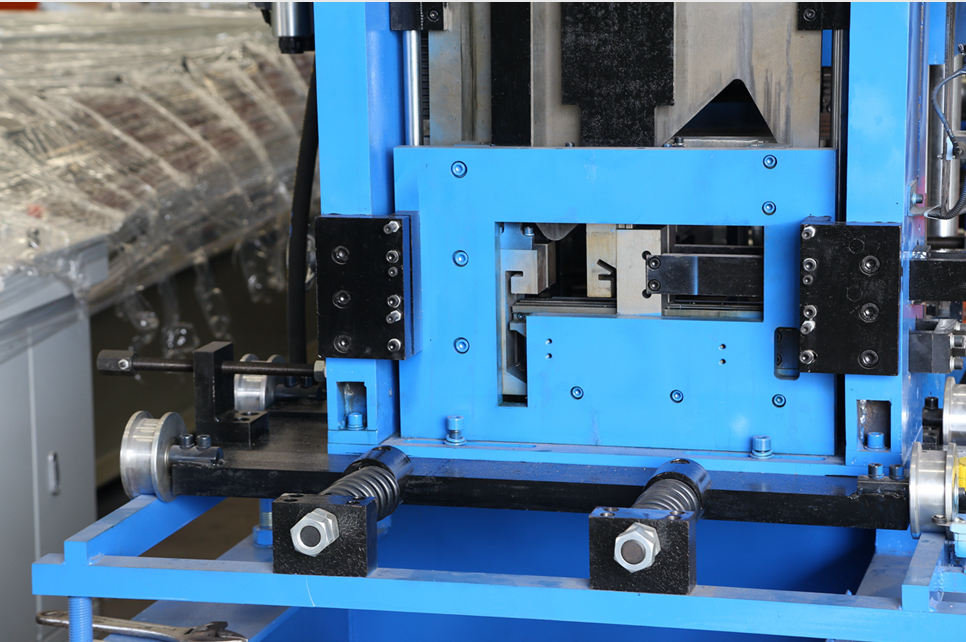

Automatic Adjustable PLC Control CZ Purlin Roll Forming Machine
The CZ automatic purlin interchange production line is faster and more time-saving than the single purlin method. Purlins of various shapes and sizes can be customized according to customer requirements. In terms of price, it is cheaper than other production lines and durable. The machine has the characteristics of high degree of automation and high production efficiency. It is controlled by the CNC system. It has the functions of multi-task programming, simulated device display, storage and data upload. Download function; It can automatically complete specification adjustment and C-type/Z-type conversion according to input parameters; It can realize features such as automatic speed regulation and accurate positioning and cutting.
The finished purlin produced by it has a smooth surface, strong bending resistance, and an exquisite appearance.
Specification
| No. | Item | Description |
| 1 | Coil | Galvanized |
| 2 | Material Thickness | 1.5 mm- 3 mm |
| 3 | Working Speed | 15- 20 m/min ( not including the cutting time) |
| 4 | Roller Station | 12-16 Raws |
| 5 | Dimension (L*W*H) | 7000 mm*1000 mm*1300 mm |
| 6 | Machine Weight | 4000 KG |
| 7 | Electrical Control System | PLC |
| 8 | Drive Motor Power | 15KW |
| 9 | Hydraulic Station Power | 15 KW |
| 10 | Power Supply | 360V/60HZ/3PH |
| 11 | Cutting Accuracy | ±2 mm |
| 12 | Driving Mode | Single Chain 2 inch |
| 13 | Material of Shaft | 80 mm 45#steel forged |
| 14 | Material of Roller | 45# Steel Finish Machining, Plated Hard |
Application
the product of C and Z roll forming machine produce widely used in purlins and wall beams in structure buildings, and can also be combined into lightweight roof trusses, brackets and other building components.
The sprayed C and Zshaped steel is used as beams, supports and ties. Due to Its safety factor is quite high, and its load-bearing capacity can also be satisfied. It can also be widely used in the roof to support roof panels and wall panels.
Advantage
The CZ-type purlin automatic interchange production line does not require a lot of operators to operate, which can save a certain amount of labor for the factory. The CZ-type purlin machine can also manufacture purlins of different materials. If the customer has such a demand, it can be produced. During the production process, the noise generated is very small and it is also environmentally friendly. Workers operating in such an environment will not suffer from health problems. Because they can work for a long time, they are not affected by climatic conditions.
